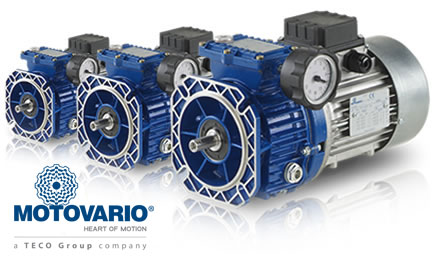

Products - Alluminium Variators (TX)

Speed variators and motovariators.

Characteristics

3 sizes with power from 0.15 to 2,2 kW with cases in die-cast aluminium alloy.
Shafts: case hardened and tempered 20MnCr5 steel (UNI8550).
Internal components: 100Cr6 heat-treated steel.
Variation range: i=( rpm max/rpm min)
i=3,5 (TX005 / 080 engine- TX010/090 engine).
i=6 (TX005/71 engine - TX010/80 engine).
with differential: i=infinite.
Torque value max 12 Nm.
Silent, vibration-free running.
High efficiency.
Bidirectional rotation.
Control handwhel positionable on either side.
Number of lost turn with motor 5% max.
Regulation sensibility: 0,5 rpm.
All the sizes are painted with Ral 5010 blue epoxy-polyester powder according to DIN 1843.
