Products - Bevel helical geared motors

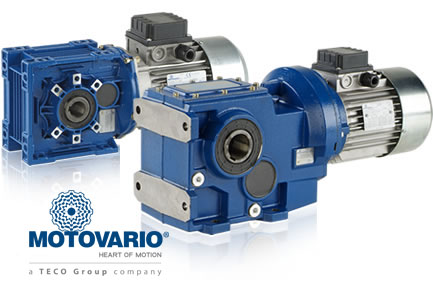

Helical bevel gearmotors and gear reducers.

Riduttori e motoriduttori a COPPIA CONICA

Characteristics

  • 5 sizes with power from 0.55 to 45 kW.
  • Gears with shaved or ground profile.
  • Gearing with 3 reduction stages.
  • Gleason spiral bevel gear pairs with run-in profile.
  • Reduction ratios between 7,8 and 180.
  • Torque max 8000 Nm and admissible radial loads max 65000 N.
  • Casing in G200 grey cast iron for high strength and optimized with FEM analysis.
  • Excellent mechanical strength.
  • Load capacity calculated to ISO6336 and verified according to AGMA 2001-B88.
  • All Size are painted with Ral 5010 blue epoxy-polyester powder according to DIN 1843.
