Products - Shaft mounted geared motor

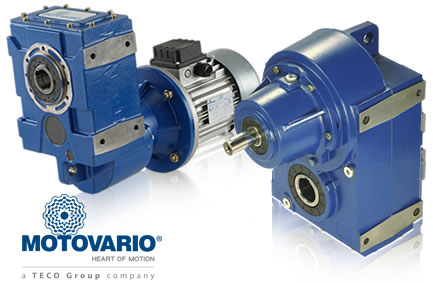

Parallel shaft mount gearmotor and gear reducer.

Riduttori e motoriduttori pendolari ad ingranaggi cilindrici.

Characteristics

  • 5 sizes with power from 0.12 to 30 kW.
  • Gears with shaved or ground profile.
  • Gearing with 2 and 3 reduction stages.
  • Reduction ratios between 7,3 and 394.
  • Torque max 3000 Nm and admissible radial loads max 11200 N (hollow shaft) and 30000 N. (solid shaft).
  • Casing in G200 grey cast iron for high strength and optimized with FEM analysis.
  • Excellent mechanical strength.
  • Load capacity calculated to ISO6336 and verified according to AGMA 2001-B88.
  • All Size are painted with Ral 5010 blue epoxy-polyester powder according to DIN 1843.
