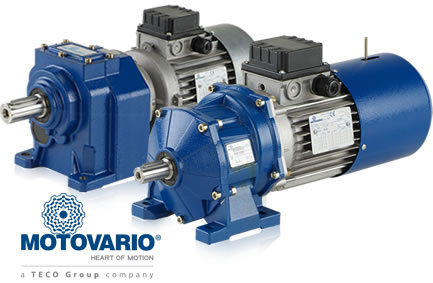

Products - Helical geared motors

In-line helical gearmotors and gear reducers.

riduttori ingranaggi cilindrici

Characteristics

  • 8 sizes with power from 0.12 to 45 kW and gears with shaved or ground profile.
  • Gearing with 1, 2 and 3 reduction stages.
  • Reduction ratios between 1,2 and 280.
  • Torque max 8000 Nm and admissible radial loads max 55000 N.
  • Casing in G200 grey cast iron for high strength and optimized with FEM analysis.
  • Excellent mechanical strength, particularly suitable to support high axial loads and high reliability.
  • Load capacity calculated to ISO6336 and verified according to AGMA 2001-B88.
  • All Size are painted with Ral 5010 blue epoxy-polyester powder according to DIN 1843.
